Connex Earthing and Current Testing Connector S2

Name: Connex Earthing and Current Testing Connector S2
SKU: 1703
Price: 60.00 AUD
Availability: InStock

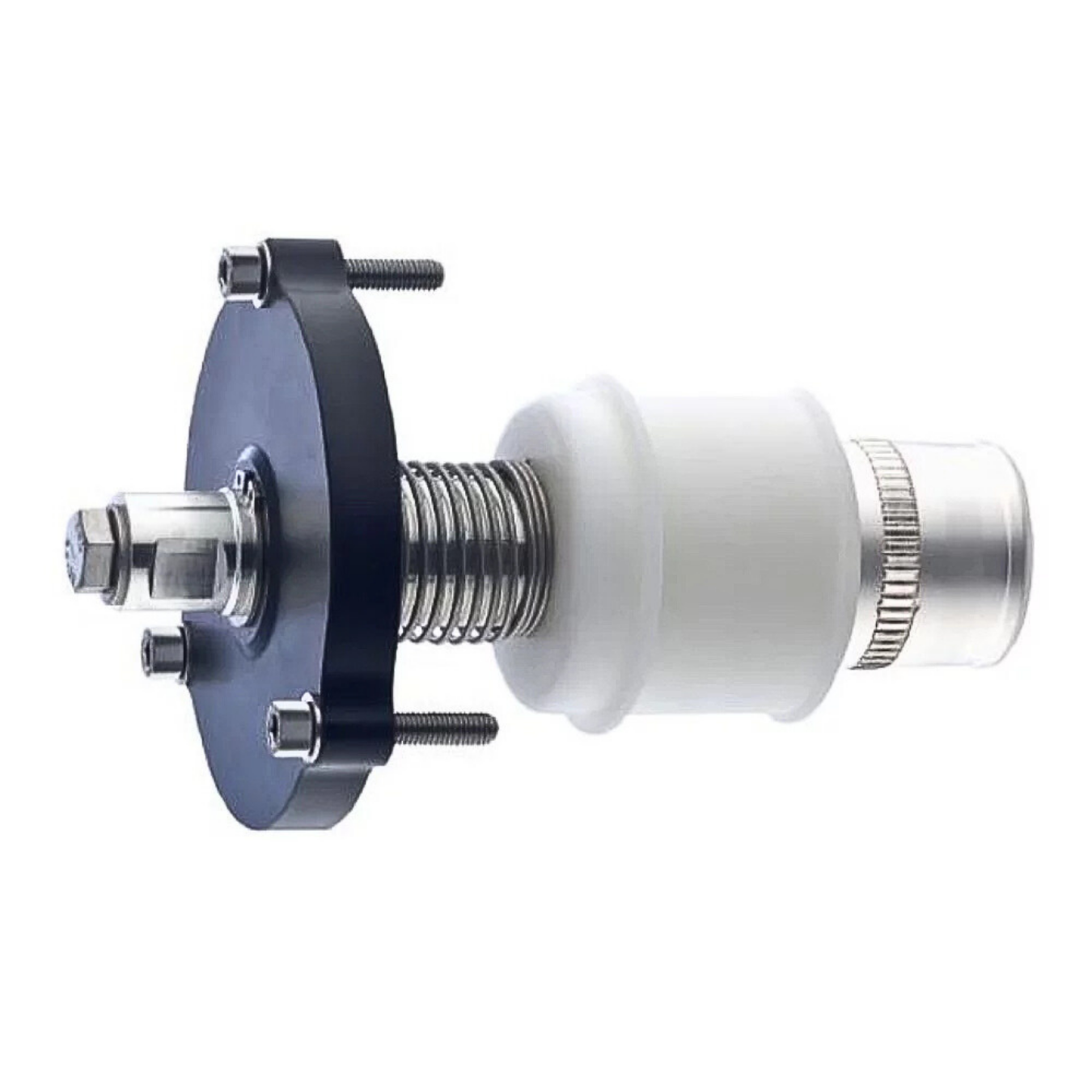

This connector permits carrying out current tests on switchgears, transformers, transducers etc. fitted with CONNEX bushings. For the electrical and mechanical connection, the connector is inserted into a CONNEX bushing of equal size and bolted.

Manufacturer

Pfisterer

Shipping details

6kg 43L 38W 16H

Daily rates

Cost per day

$60

$54

$45

$37.80

Duration (days)

1-7

8-14

15-28

29-90

Typical Hire Periods

Cost

$420

$756

$1,134

$2,268

Duration

week

fortnight

1 month

2 month

All prices are ex-GST

Committing to 3, 6 or 12 months?
Call us on 1300 024 473 for fantastic long term hire rates.

Description

Pfisterer MV CONNEX Part Number	Current-Testing Bushing Size	Nominal Current I_{N A}	Test Current max. 4min./A	Rated short-time withstand current 1 s (kA)	Rated short time withstand current 3 s (kA)	Max. testing voltage U_{m (kV)}	a (mm)	b (mm)	c (mm)	d (mm)	Application
MV CONNEX 827 181 010	0	250	750	16	–	2	88	30	122	184	outdoor-proof
MV CONNEX 827 181 011	1	630	2000	31.5	18	2	95	30	122	184	outdoor-proof
MV CONNEX 827 181 012	2	800	2500	40	25	2	102	30	122	184	outdoor-proof
MV CONNEX 827 181 013	3	1250	3150	50	40	2	130	35	170	238	outdoor-proof

Technical Data

Article no: 827 181 012

Size: 2

Max. testing voltage Um (kV): 2

Nominal current IN (A): 800

Rated short-time withstand current 1 s (kA): 40

Rated short-time withstand current 3 s (kA): 25

Test current max. 4min./A: 2500

Dimension A: 102mm

Dimension B: 30mm

Dimension C: 122mm

Dimension D: 184mm

Key Features

Supports a maximum testing voltage of 2 kV.
Handles a nominal current of 800 A.
Suitable for both indoor and outdoor use, including offshore environments.
Operates effectively within a temperature range of -25°C to 50°C.
Offers robust outdoor resistance, ensuring durability across diverse conditions.
Designed for easy mechanical and electrical integration into Connex sockets.
Ensures safe and secure testing of electrical components like switchgear and transformers.

Applications

Switchgear maintenance — Ideal for routine and emergency maintenance, the Connex Earthing and Current Testing Connector S2 facilitates current testing in switchgear setups, ensuring all components function optimally and safely. Its robust design allows for quick diagnostics and repair, reducing downtime in critical electrical infrastructures.
Transformer testing — Essential for checking transformer performance, this connector provides reliable connections for conducting thorough current tests. It ensures that transformers meet operational standards and helps identify potential issues before they lead to system failures.
Transducer applications — The Connex Earthing and Current Testing Connector S2 helps verify the accuracy and functionality of transducers within power systems. This is crucial for systems that rely on precise measurements for effective operation and safety.
Offshore installations — Specifically designed to be outdoor-resistant, it’s suitable for use in harsh marine environments. This makes it invaluable for testing and maintaining electrical systems on offshore platforms, where conditions can accelerate equipment wear and corrosion.
GIS integration — The connector can be used in gas-insulated switchgear systems for installation and maintenance. Its design allows for safe and efficient testing without exposing sensitive components, making it an integral tool in GIS applications.

Hire the Connex Earthing and Current Testing Connector S2 today

If you need a reliable rental provider of testing and measurement equipment, Brandis Hire is the name to trust. We make it easy to get the tools you need with our vast catalogue, no lock-in hire periods and free technical support.

Enquire about the Connex Earthing and Current Testing Connector S2 for rent today by submitting a booking request. You may also contact us directly for questions or concerns.
