Kyoritsu 6011A User Manual

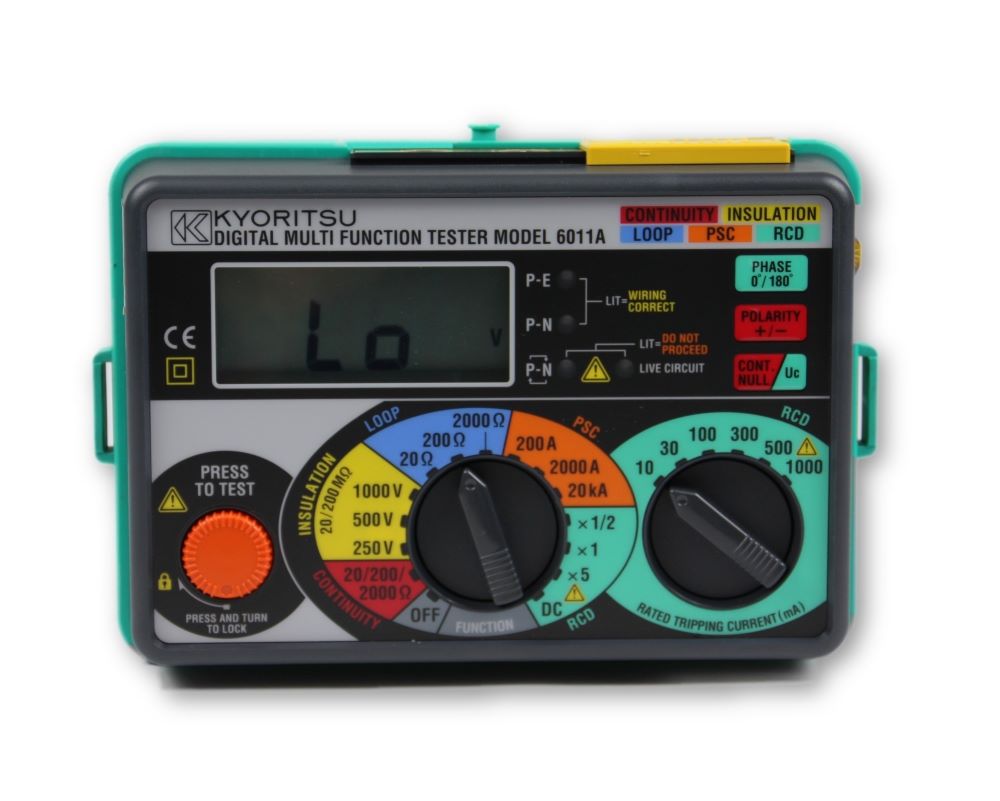

The Kyoritsu 6011A is a 5 in 1 Digital Multifunction Tester capable of continuity, insulation, loop, prospective short current (PSC) and RCD trip testing.
Advanced multifunction instrument that can perform continuity testing up to 2000Ω. A polarity switch function is available for continuity testing as well as an auto-null facility to ensure precise readings. The 6011A model can additionally test insulation resistance. This can be measured up to 200MΩ with a 1000V DC test voltage.
Furthermore, the Kyoritsu 6011A can perform loop and RCD testing. This includes testing across a large RCD range of current ratings (10/30/100/300/500/1000 mA). Loop testing can be performed up to 2000Ω and with a low short circuit current of 15mA, to prevent the tripping of RCDs. As well as loop and RCD testing, the propesctive short current (PSC) can also be measured.
The Kyoritsu 6011A integrates several safety features including a live circuit warning LED to indicate the circuit under test is live.The instrument is supplied with test leads (including test lead with IEC connector), case, external earth probe,shoulder strap and batteries.
- 5 in 1 Tester – Continuity, Insulation, Loop, RCD Testing and PSC.
- Three ranges for insulation tests at 250, 500 and 1000V
- Three ranges for loop and PSC tests – 15mA test current at 200Ω/2000Ω range (No RCD Trip).
- Phase angle selection on RCD ranges.
- Autoranging continuity testing (20/200/2000Ω).
- Polarity switch for continuity tests.
- Auto-null facility for continuity tests.
|Standard Accessories||User Manual Test Leads and Accessory Case|
|Power Supply||8 x AA Alkaline Batteries|
|Battery Life||Approx. 12 Hours Continuous Operation|
|Continuity Measurement Range||0-2000 Ω|
|IR Test Voltage||250/500/1000VDC|
|Loop Impedance Ranges||20/200/2000Ω|
|Loop Impedance Test Current||25A (20Ω range) 15mA (200Ω range) 15mA (2000Ω range)|
|PSC Ranges||200A (15mA Test Current)
2000A (25A Test Current)
20kA (25A Test Current)
|RCD Trip Current Test Ranges||RCD × 1/2 : 10,30,100,300,500,1000mA
RCD × 1 : 10,30,100,300,500,1000mA
RCD × 5 : 10,30,100,300mA (on × 5 ranges max current 1A)
|Weight||Approx. 1100 g (including batteries)|
